Engineering and Manufacturing of Microfluidic Systems

MICROFLUIDIC EQUIPMENT


Wingflow specializes in the development and production of special equipment for microfluidics. The delivery program includes standard and customized systems for laboratories as well as equipment for pilot and production scale. Components produced by Wingflow and partner companies are engineered and upscaled into new and existing turnkey systems. The design and assembly of the pilot plants are based on findings from laboratory-scale experiments supervised by Wingflow specialists. In each specific case customer-specific solutions are developed and implemented.

  • Chemical Laboratories
  • Pharmaceutical Laboratories
  • Clinical & Medical Laboratories
  • Chemical Plants
  • Pharmaceutical Productions
  • Clinical and Medical Institutions

MICROFLUIDIC DOSING SYSTEMS

Precise dosing is the key to operation of microfluidic systems. We offer dosing systems for liquids and gases to suit the customer needs.

Easy returns

Precise flow rates for biological and medicinal applications.

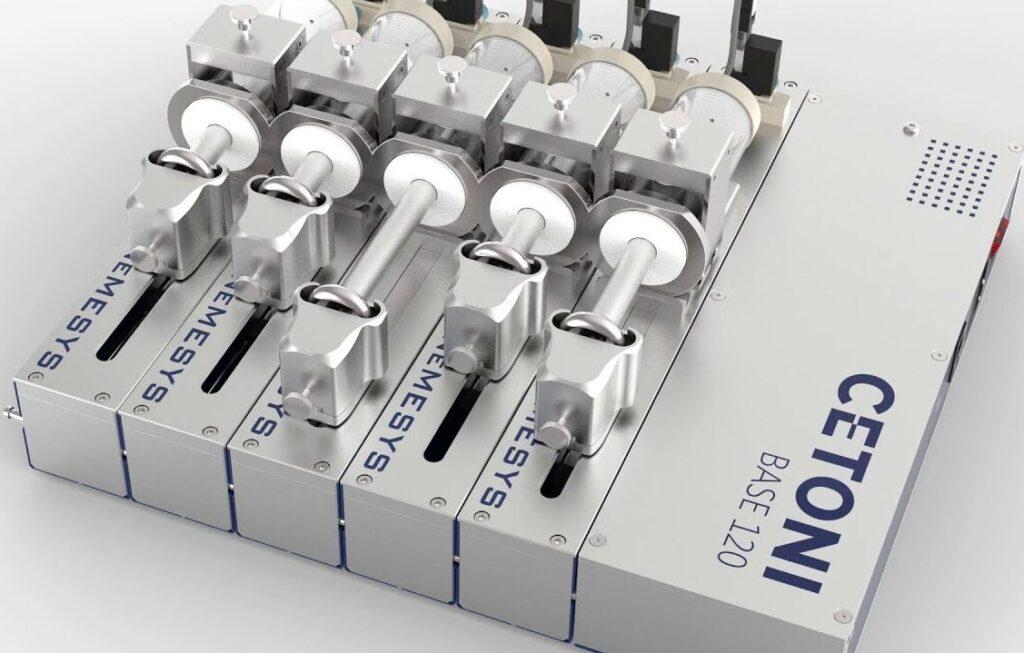

Syringe Pumps neMESYS

Accurate flow rates for chemical and pharmaceutical applications.

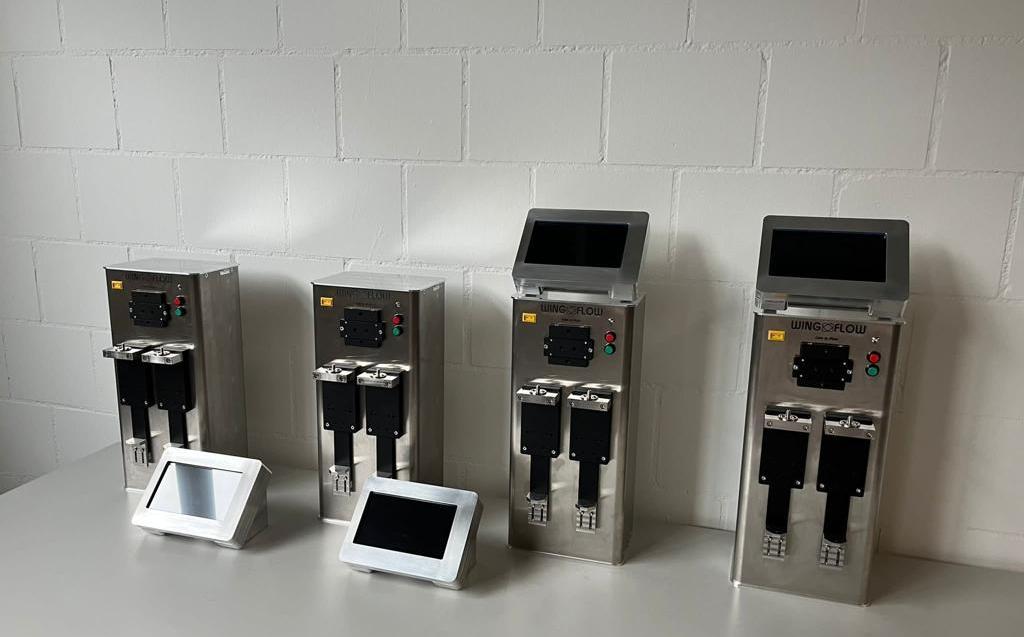

Syringe Pumps Wmix

Max. operating pressure: 50 bar Flow rate min. [nl/min]: 0,02

Quality assured

Max. operating pressure: 200 bar Flow rate min. [nl/min]: 0,008

Easy returns

The compact Wingflow gas stations, equipped with Haskel compressors and adjustable valves, ensure safe and continuous gas dosing.

Free shipping

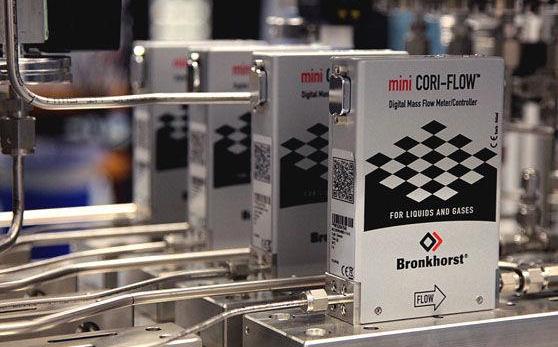

Bronkhorst MINI CORI-FLOW™ series meters & controllers offer accurate measurement and dosing of gases and liquids.

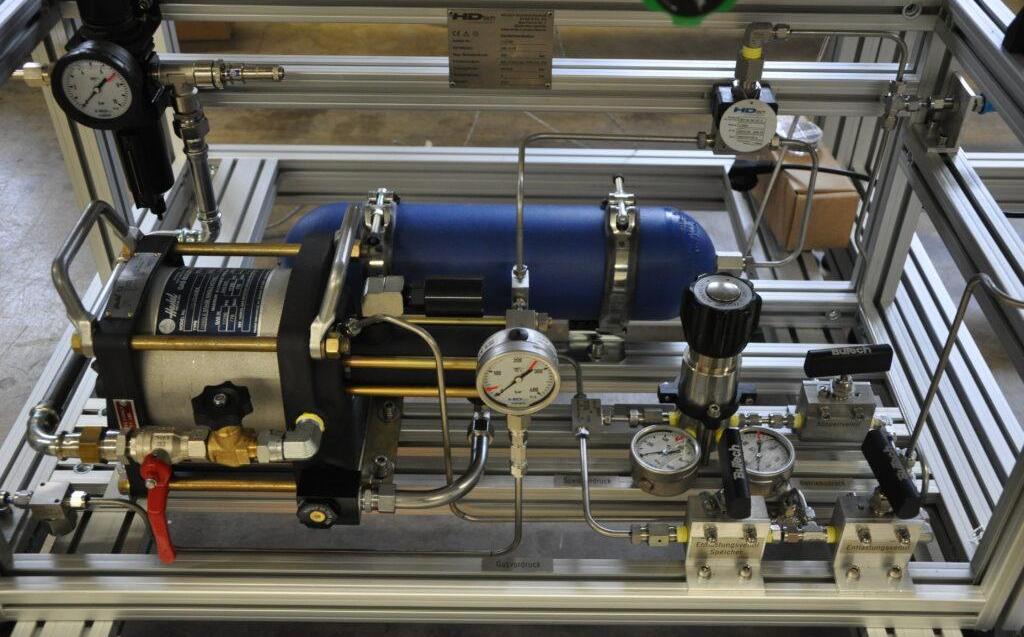

Gas Station GB-1178 AG-75

Max. operating pressure: 600 bar Pressure regulator: 3.5 - 414 bar

Quality assured

High pressure reservoir: 3 l Media: H2, O2, N2, Ar, CO2

MICROFLUIDIC CHIPS

Our scope of delivery includes standard chips for various applications as well as customer specific chips that can be customized and manufactured on request.

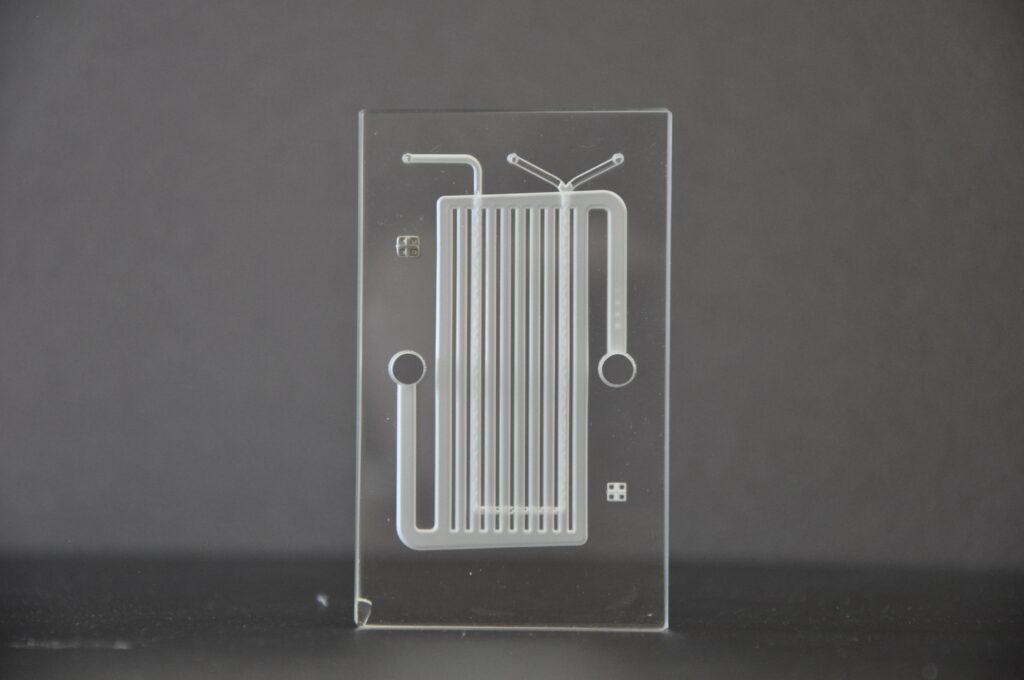

Glass Chips

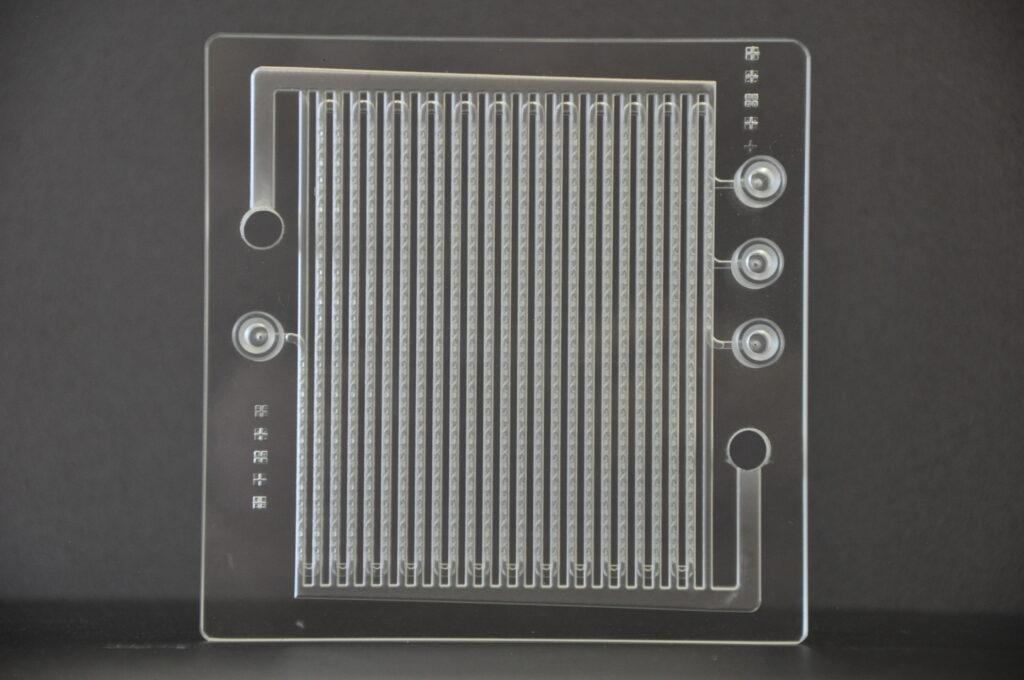

Wingflow offers various microfluidic glass reactors for continuous flow mode. This material is ideally suited for a wide range of microfluidic applications, since it is also resistant to difficult environmental influences, and at the same time displays a high degree of biocompatibility. In addition to chips for chemical and pharmaceutical applications, we offer customized glass chips for biomedical purposes (organ-on-a-chip, lab-on-a-chip, IVF-on-a-chip).

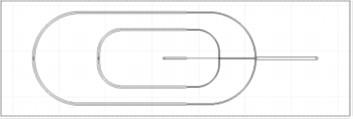

Droplet Chips T SERIES

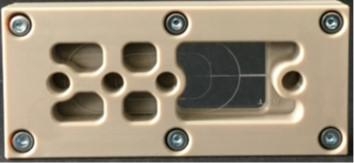

The T series contains sheath flow droplet generation microfluidic chips used e.g. for encapsulation of Active Pharmaceutical Ingredient (API) as well as spherical particle generation. Chips are connected with a chip holder (PEEK, Al are avaliable) or by standard fittings. Customer specific designs are avaliable on request.

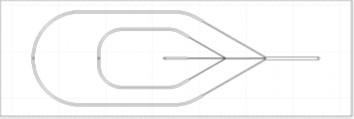

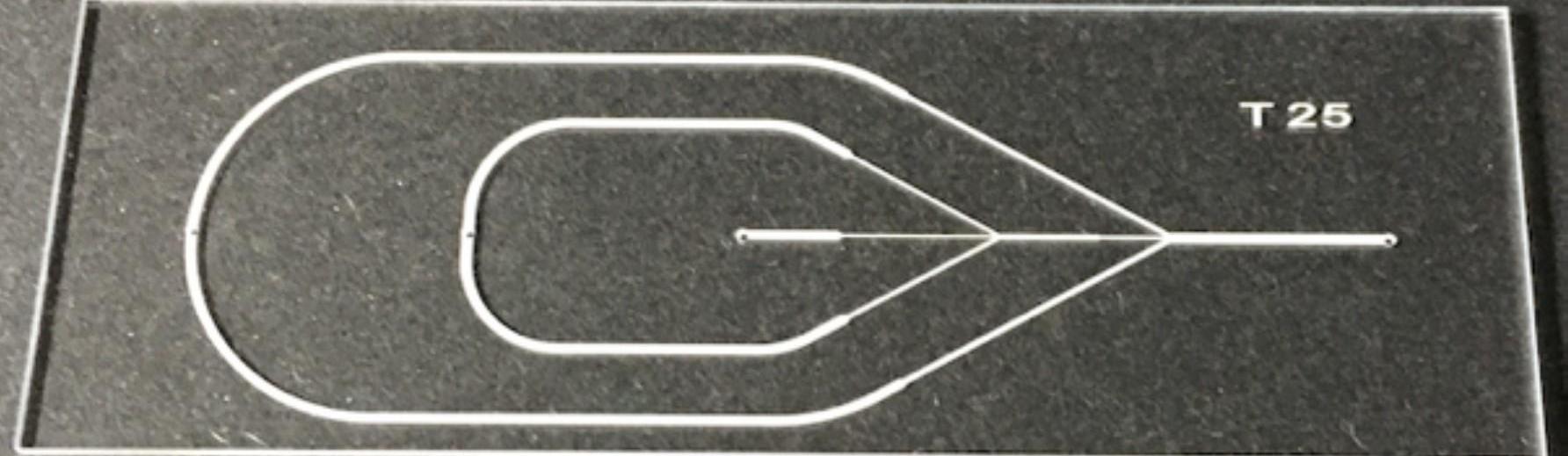

T-25 Droplet Chip

Size: 25 * 75 * 1,0 mm Volume of mixing zone: 0.47 µl Volume of reaction zone: 3.30 µl Inlets / Outlets: 3-1

T-26 Droplet Chip

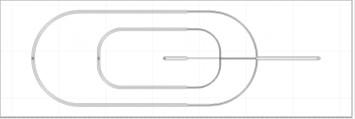

Size: 25 * 75 * 1,0 mm Volume of mixing zone: 0.47 µl Volume of reaction zone: 3.30 µl Inlets / Outlets: 3-1

Incredible
Features



Advanced
Capabilities



MR-LAB SERIES

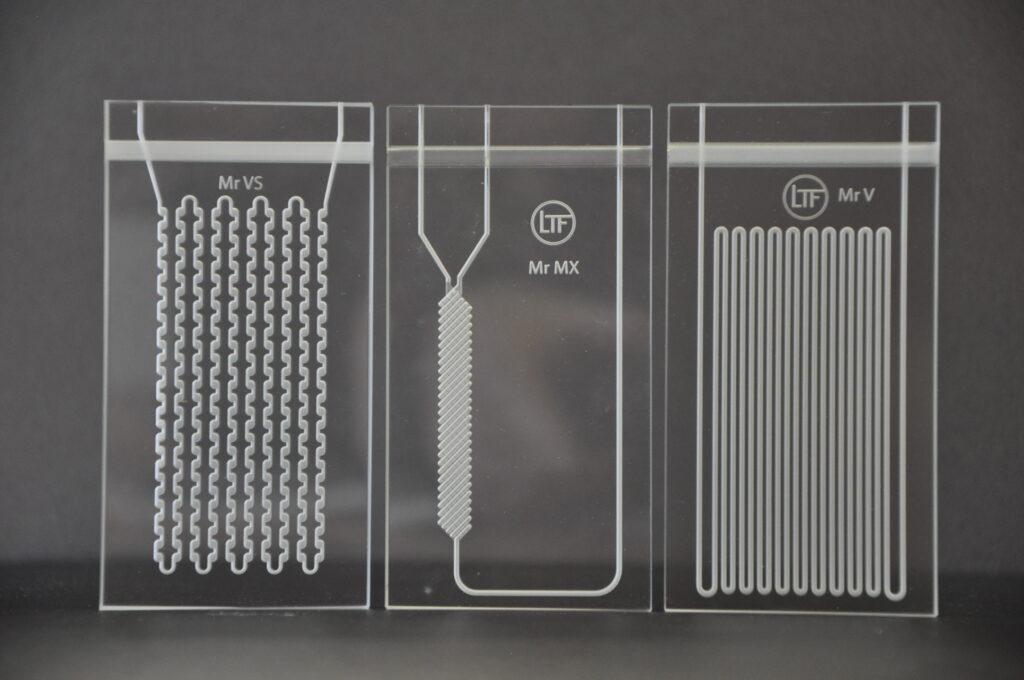

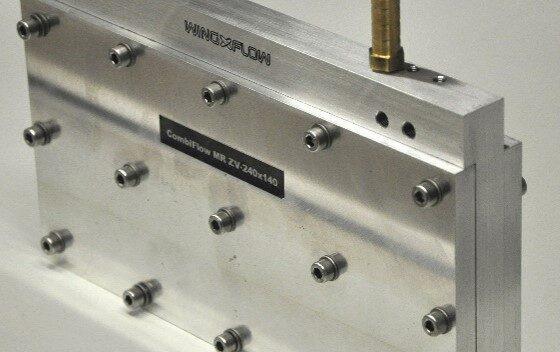

The MR-Lab series consists of Micromixer Type S and Type X, Microreactors Type V and Type VS, Aluminium connecting bar with additional frame for up to 5 reactors and stage clamp. The MR-Lab series is made of borosilicate glass, has no dead volume, is simple to operate and has space-saving in use. They are pressure stable up to 15 bar. Customer specific designs are avaliable on request.

Micromixer MR Lab MS Volume: 0.2 ml Channel size: 1 mm


Microreactor MR Lab VS


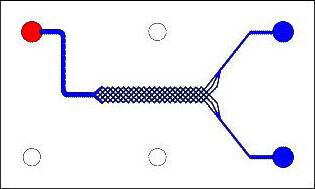

HTM SERIES

The HTM series microreactors are designed for experimentation and are ideal for testing new processes before scaling up to larger components like the XXL reactors. These microreactors are available with or without heat exchangers and are constructed from durable borosilicate glass. They can withstand pressures up to 20 bar, and custom designs are available upon request.

Our Top-Tier Products


Micromixer Type S


  • Micromixer Type ST
  • Size: 90 * 54 * 2 mm without HE
  • Size: 90 * 54 * 9 mm with HE
  • Volume: 0.06 ml
  • Permitted particle size 50 µm

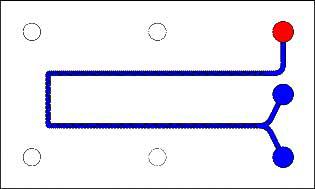

Micromixer ST 2-1 Specifications


Micromixer ST 3-1


Microreactor KOE

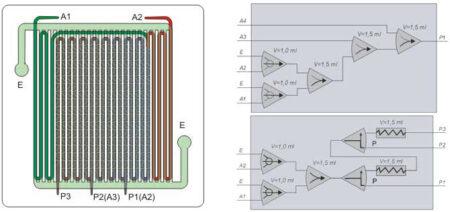

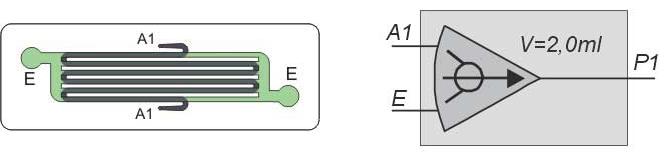

Microreactor XXL-KOE-01


MR-PILOT SERIES

The MR-Pilot series permits the implementation of the results investigated in the lab into bigger scales. The MR-Pilot reactors are made from borosilicate glass. The reactors are connected about a connection rail. They are pressure resistant up to 10 bar, higher stability is individually possible on inquiry. Customer specific designs are avaliable on request.

Enhance Your Experience

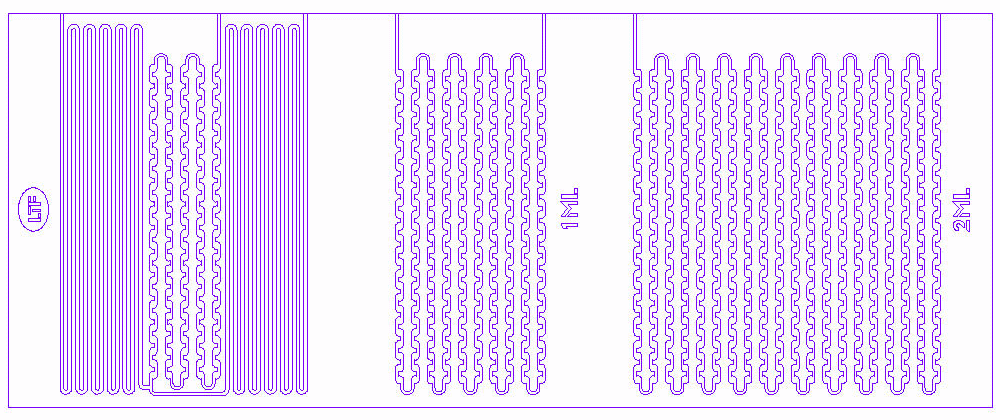

MR-Pilot-1 Size: 250 x 100 x 6,4 ±0,5 mm Volume: 1 ml + 2 ml Material: Borofloat33 Mixing and Reaction Zone

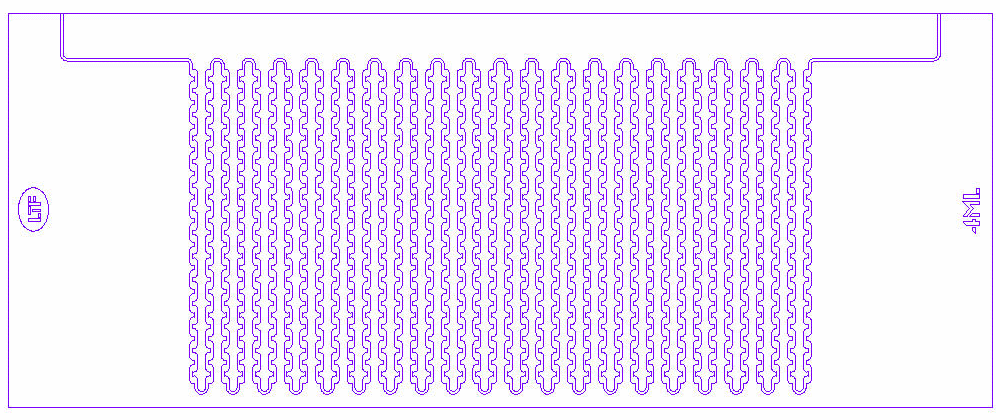

  • MR-Pilot-2
  • Size: 250 x 100 x 6,4 ±0,5 mm
  • Volume: 4 ml
  • Material: Borofloat33
  • Reaction Zone

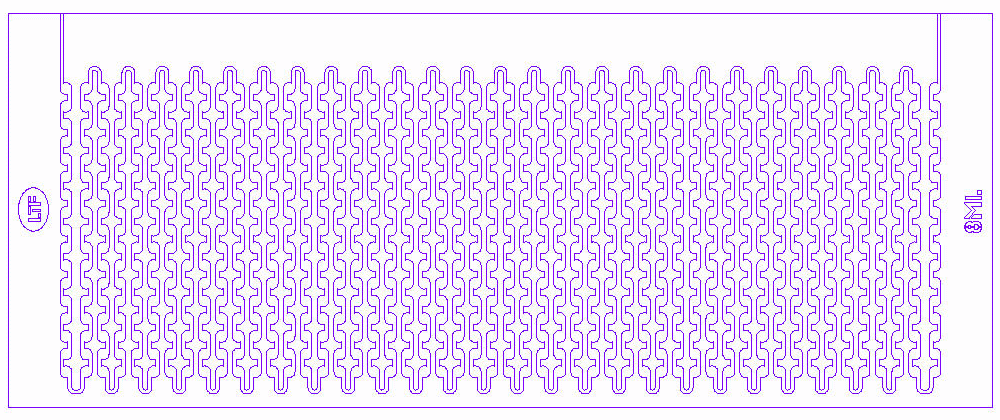

  • MR-Pilot-3
  • Size: 250 x 100 x 6,4 ±0,5 mm
  • Volume: 8 ml
  • Material: Borofloat33
  • Reaction Zone

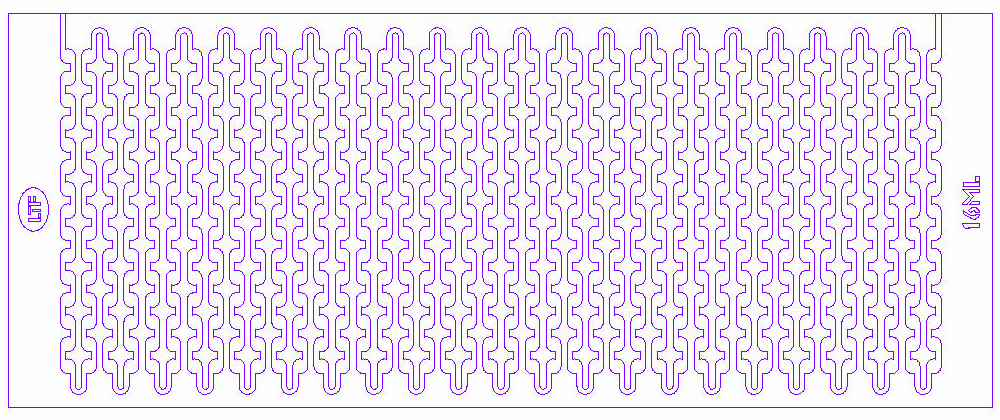

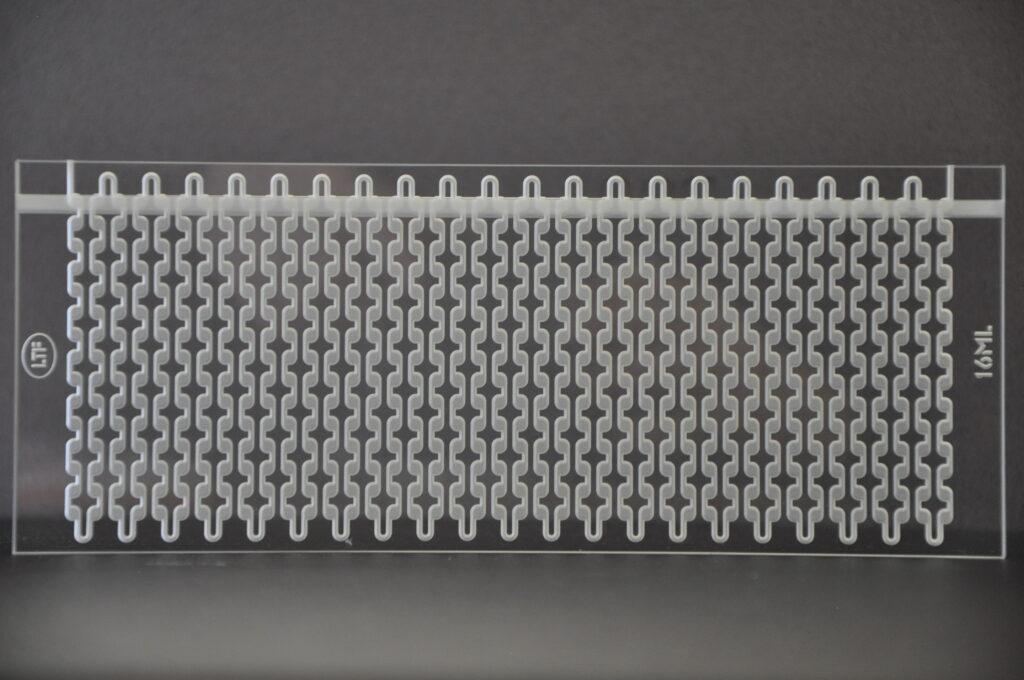

  • MR-Pilot-4
  • Size: 250 x 100 x 6,4 ±0,5 mm
  • Volume: 16 ml
  • Material: Borofloat33
  • Reaction Zone

XXL SERIES

The XXL series permits the large-scale implementation of laboratory research results. The reactors with integrated heat exchangers are connected via glass internal screws or hollow screws with clamping ring connection for the thermostat. The borosilicate glass microreactors are stable under pressure up to 20 bar. Customer specific designs are available on request.

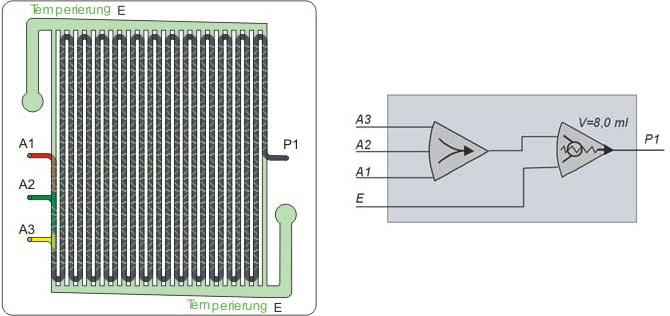

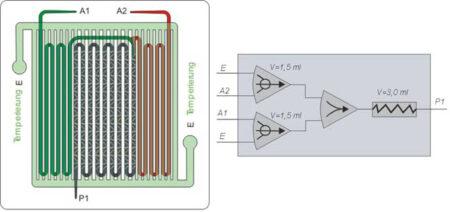

XXL-ST-01 Microreactor


High-Quality Microreactor


Partners and references


Our Products

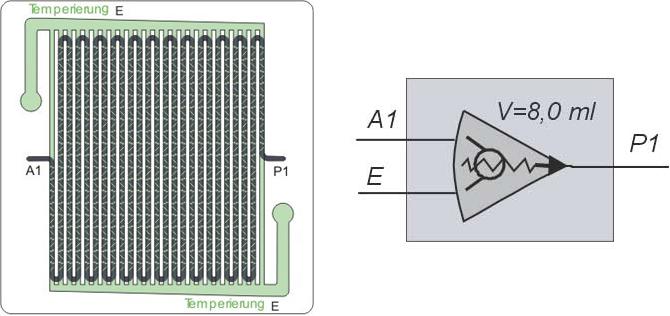

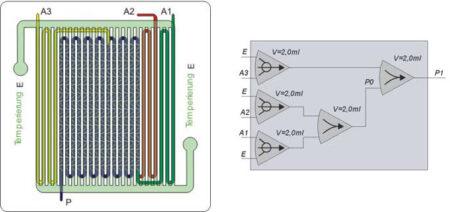

Microreactor XXL-ST-05 Specifics


Our Products

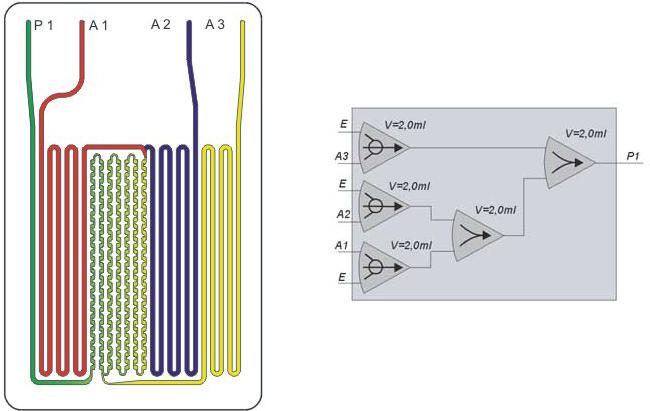

Microreactor XXL-S-02


Stainless Steel Chips

Wingflow offers microfluidic chips crafted from stainless steel. This material excels in demanding applications, handling high temperatures and pressures with ease.

Easy returns

Various chips with different capillary structures, including mixing and reaction zones.

Free shipping

Implement lab results into bigger scales with pilot series stainless steel chips fitted with thermostats.

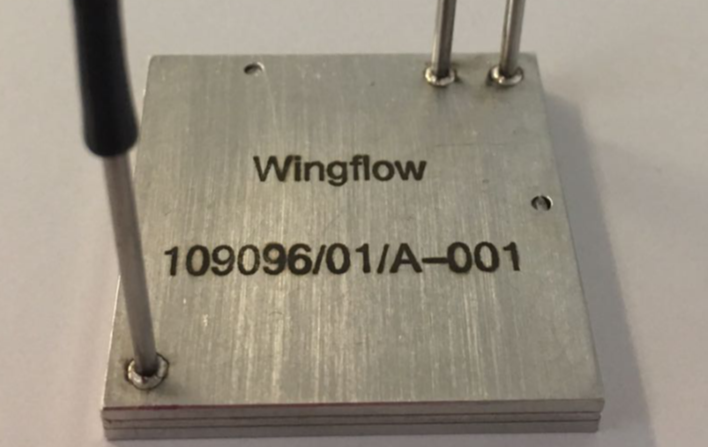

Microreactor WF-Lab SS-1: 3.0 ml volume, 0.8 mm channel size.

Microreactor WF-Pilot SS-1: 20 ml volume, 1.2 * 2.0 mm channel size.

Quality assured

Every product is carefully tested to meet high standards of durability and performance.

Explore Our Microfluidic Innovations

Discover the diverse applications of microfluidics in synthesis, encapsulation, and advanced cell analysis.


Microfluidic Synthesis

Enhance efficiency in API synthesis with continuous flow microfluidic technology.

Microfluidic Encapsulation

Improve active ingredient delivery with advanced microfluidic encapsulation techniques.

CTC-on-Chip

Isolate, identify, and characterize Circulating Tumor Cells (CTC) with precision.

Organ-on-Chip

Mimic human body environments for disease modeling and drug testing.

Lab-on-Chip

Automate laboratory techniques in a compact microfluidic system.

IVF-on-Chip

Optimize IVF procedures, reduce embryo stress, and minimize human error.
